Pin-disc Friction & Wear Testing Machine

Model : WPD-2000


  • WPD-2000 is one type of pin-disc friction wear testing machine.
  • The specimen of metal and non-metal material will be machined to pin shape, disc shape or dual rings to do the test.
  • The pin-disc friction wear testing machine can measure the anti-wear characteristics and frictional coefficient even under lubrication status.

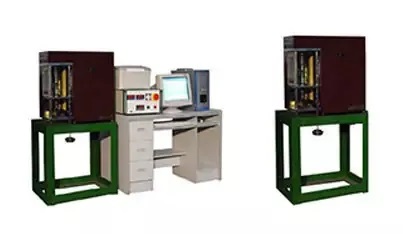

  • WPD-2000 Pin-disc Friction Wear Tester is available in two moods, PC & software mood or none PC mood.



  • Max. Load: 2000N with accuracy ±1%
  • Load is applied by lever.
  • Axial Speeds: 370, 549, 1102, 1973, 2930, 5880r/min
  • Max. Frictional Torque: 2N.m
  • Motor: 970/1440/2880r/min
  • Specimen Dia. of Calculation: 27mm
  • Dimensions: 700 × 330 × 690mm
  • Weight: 200kg
