CTEN Series Automatic Compression Testing Machine


Description


  • This series compression testing machine is mainly designed for compression test of building material items, such as concrete cube, concrete blocks, cement specimen, and bricks etc, also used for compression performance test of rubber pad and top forge test of metal.
  • With new design idea and advanced technology, this series have more advantages in appearance, operation & applications.
  • It is the ideal test equipment for quality control at industry & mineral enterprises, education in high schools, and technology researches at scientific institutes


Applied Standard



   Standards:

  • It is conformed to EN 12390-3, 12390-4; BS 1881,ASTM E4, ASTM C139, ISO7500-1, EN10002-2, BS 1610, DIN51220, C1231 –AASHTO T22 -NF P18-411 -UNE 83304, 7242 etc.
  • Applicable Specimen size:</strong></p><p>Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more; Rectangular sample: 400x200x200mm, 400x200x400mm etc; Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.

  Applicable Specimen size:

  • Extensive ranges for Cubic sample: 100mm, 150mm, 200mm and more; Rectangular sample: 400x200x200mm, 400x200x400mm etc; Cylindrical sample dia.150x300mm, dia.100x200mm, dia. 200x400mm or others as per customer required.

  Remark: test space & compression platen can be customized according to specified specimen size.


Load frame


  • Welding structure provides the higher stiffness of load frame;
  • Upper compression platen is with ball seat assembly for more accurate test;
  • Pressure transducer is for load measuring.
  • Safety covers is mounted around the columns to protect the operator, the front gate is with interlock switch to prevent machine operation when gate is open.
  • Dual-side average extensometers or compressometer with LVDT measuring device can be applied with this machine for determination of Modulus of Elasticity of concrete specimen.</p><p>&nbsp;</p><p><strong>Modulus of Elasticity for concrete</strong></p><p>Dual-side average extensometers or compressometer with LVDT measuring device can be applied with this machine for determination of Modulus of Elasticity of concrete specimen.

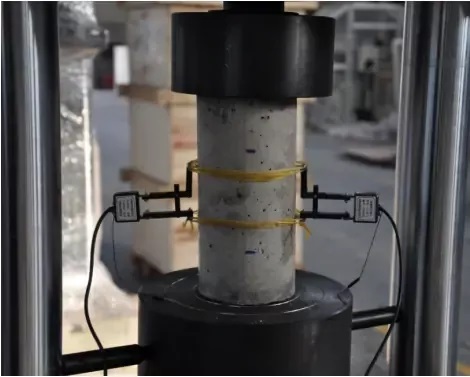

   Modulus of Elasticity for concrete

  • Dual-side average extensometers or compressometer with LVDT measuring device can be applied with this machine for determination of Modulus of Elasticity of concrete specimen.

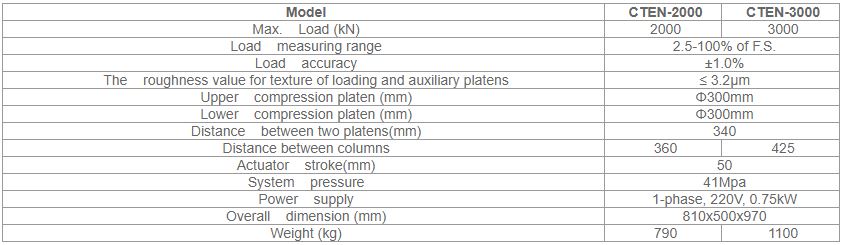

Specification
