Concrete Drainpipe Compression Testing Machine


Model : SCT Series


Description


  • The concrete drainpipe compression testing machine is designed for the radial compression test of drainpipe and other cement pipes which accords with "Test method of concrete and ferroconcrete drainpipe”.
  • The concrete drainpipe compression testing system is also suitable for the compression test of other metal and non-metal materials.
  • This concrete drainpipe compression testing machine consists of load frame, oil source, computer and servo unit. It is of compact structure and easy to operate.


Applied Standard


  • This concrete drainpipe compression testing machine consists of load frame, oil source, computer and servo unit. The compression testing system is of compact structure and easy to operate.

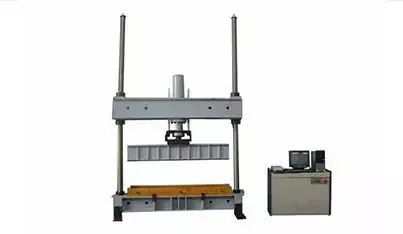

Load frame


The load frame has dual columns with top actuator. The base of the load frame is made of steel plate and it is convenient to take the specimen in and out (drainpipe and other concrete pipe). The oil power source is with constant servo flow of4.1L/min, 26Mpa. The servo valve is Moog or Atos. Load is measured by load cell. The deformation can be measured through two digital dial indicators.

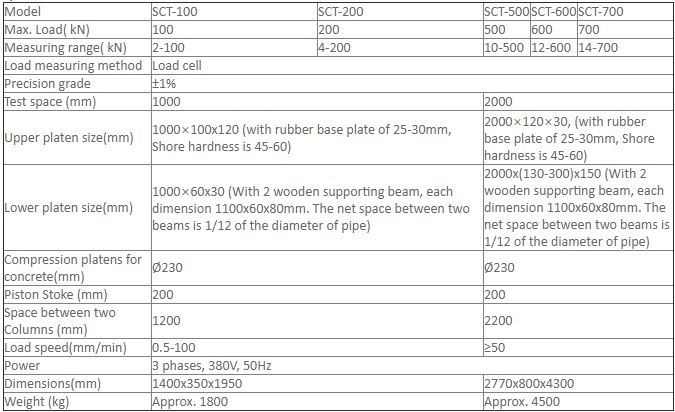

Specification
