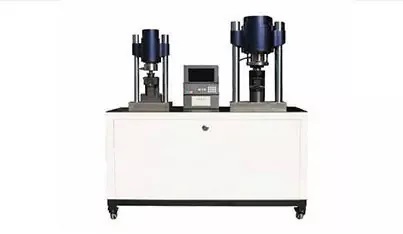

Model : CST-300/200

Description

• This Compression and Flexure Testing Machine is mainly designed for compression and bending tests of cement & mortar specimens.
• The Compression and Flexure Tester for Cement can finish compression or flexure tests automatically by one-key action. Computer & software are also adopted to make the operation even easier.
• With new design and advanced technology, the series of Compression and Flexure Testing Machine have more advantages in appearance, operation & applications.
• The Compression and Flexure Tester for Cement is an ideal tester for quality control at industrial & mineral enterprises, teaching in high schools, and technology researching at scientific institutes.

Applied Standard

• This Compression and Flexure Testing Machine conforms to GB/T 17671, EN 196, ISO 679, ASTM C 109 and EN ISO7500-1 etc.

Specification

• Max. Compression Load: 300/200kN
• Loading Range: 3 to 300kN and 2 to 200kN
• Constant Loading Speed for Compression Test:2.4kN/s
• Piston Stroke: 20mm
• Max. Flexure Load: 10kN
• Loading Range: 0.1 to 10kN
• Constant Loading Speed for Flexure: 50N/s
• Indicating Value Relative Error:
• Indicating Value Repeatability Error: 1%
• Zero-return Relative Error: ±0.1%
• Load Resolution:0.5%
• Load Cell Accuracy: 0.1%
• Max. Oil Pressure: 20Mpa
• Platen Size: dia. 128mm
• Piston Stroke: 15mm
• Power Supply: 220V, 1phase, 50Hz, 750W
• Dimension: 1100mm × 400mm × 1350mm
• Weight: 250kg

Test Accessories

Compression fixture for cement specimen
